Modulation Elevation

Bucket Brigade Devices have been at the heart of our favourite modulation effects since the first compact pedals and studio units were introduced almost half a century ago. Repeatedly responsible for era-defining sounds across genres, they are perhaps even more beloved now than ever for their inimitable sonic characteristics.

Collaborating with Dan and Mick of ‘That Pedal Show’, we embarked on a journey to create a pedal capable of authentically harnessing those classic sounds. And we didn't stop there, uncovering a whole world of new and inspiring ways to interact with these wonderful devices in the stereo field.

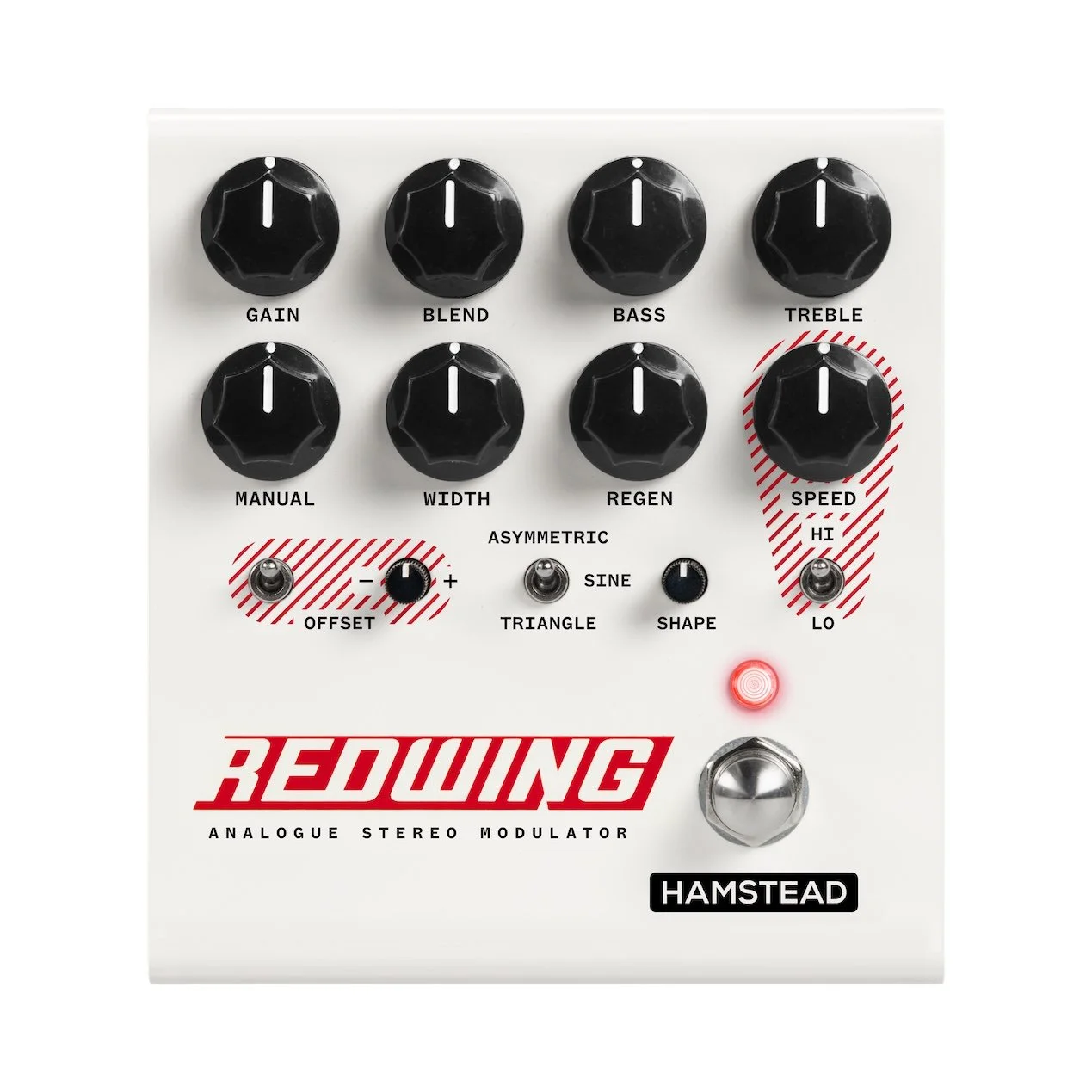

The result is Redwing, 100% analogue and built without compromise, offering the most dynamic and glorious array of stereo modulation effects. From high-fidelity Flanging, lush Chorusing, and smooth Vibrato to bonkers Ring Modulation and so much more - all driven by our ‘Signature’ waveform generation.

In-depth Features

• Superior high-frequency response for inspiring fidelity and classic Flanging tones.

• No Companders, Noise-Gates or anything else that might compromise on the feel and touch-sensitivity of the pedal.

• Switchable Mono to Stereo or True Stereo capability from input to output, via Dual BBD lines.

• Offset second BBD line for through-zero modulation or enhanced stereo dimension.

• Extreme versatility from Flanging to Chorus to Vibrato to Ring-Modulation and so much more!

• Switchable outputs for Mono/Stereo and Wet/Dry as well as Bi-Flanger/Bi-Chorus in mono.

• 100% Analogue waveform generation and unparalleled waveform shaping.

• 9 – 24VDC input to internal isolated Switch Mode Power supply giving ±15V and no ground loops.

Specification

• Original All-Analogue Design

• Dimensions: 125mm x 115 Wide x 70 High

• Weight: 830gm

• Input Impedance: Stereo 900K, Mono 450K

• Output Impedance: <300R

• Power Requirement: 365mA, 9 – 24VDC

• Featuring silent optical switching and TheGigRig’s OptoKick footswitch for excellent reliability.
